Validation of science data from the CU8 Apsis chain

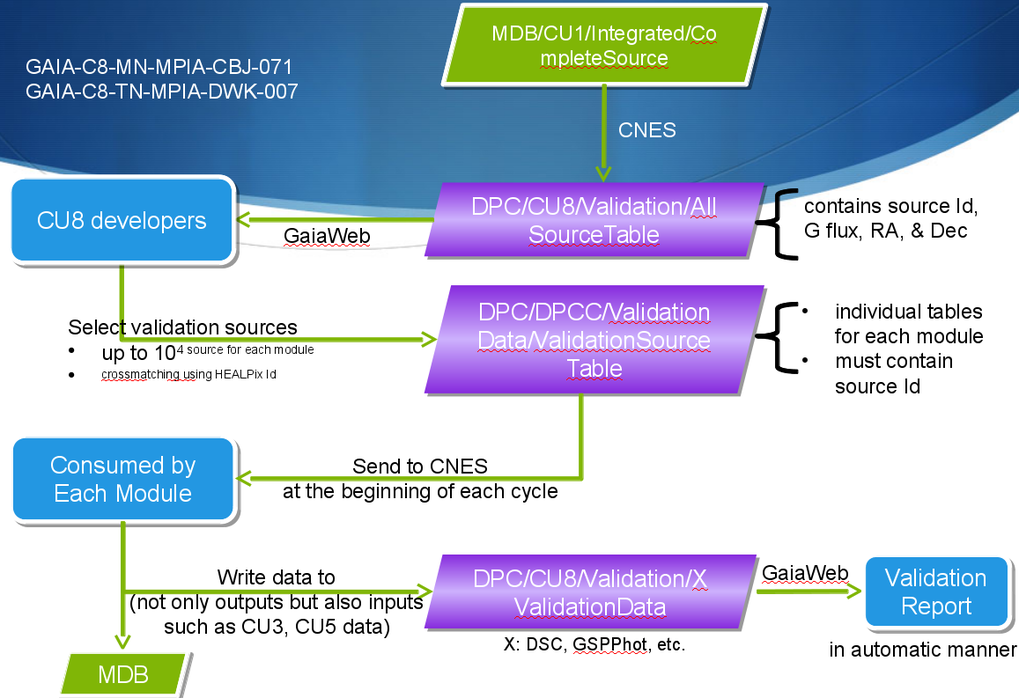

![Figure 1. Diagram of validation processes. Green boxes are MDB tables. Violet boxes are DPC tables available after the CU8COMMON version 17.0.1. Blue boxes indicate tasks that each WP manager should perform: (1) download "All Source Table", (2) generate "Validation Source Table", (3) update Apsis module in such as way to write outputs to "Validation Data", and (4) create a validation report.](/4485836/original-1518438321.jpg?t=eyJ3aWR0aCI6MjQ2LCJvYmpfaWQiOjQ0ODU4MzZ9--285336d4a16afc14c0922e49ca0b6f740444f744)
Figure 1. Diagram of validation processes. Green boxes are MDB tables. Violet boxes are DPC tables available after the CU8COMMON version 17.0.1. Blue boxes indicate tasks that each WP manager should perform: (1) download "All Source Table", (2) generate "Validation Source Table", (3) update Apsis module in such as way to write outputs to "Validation Data", and (4) create a validation report.

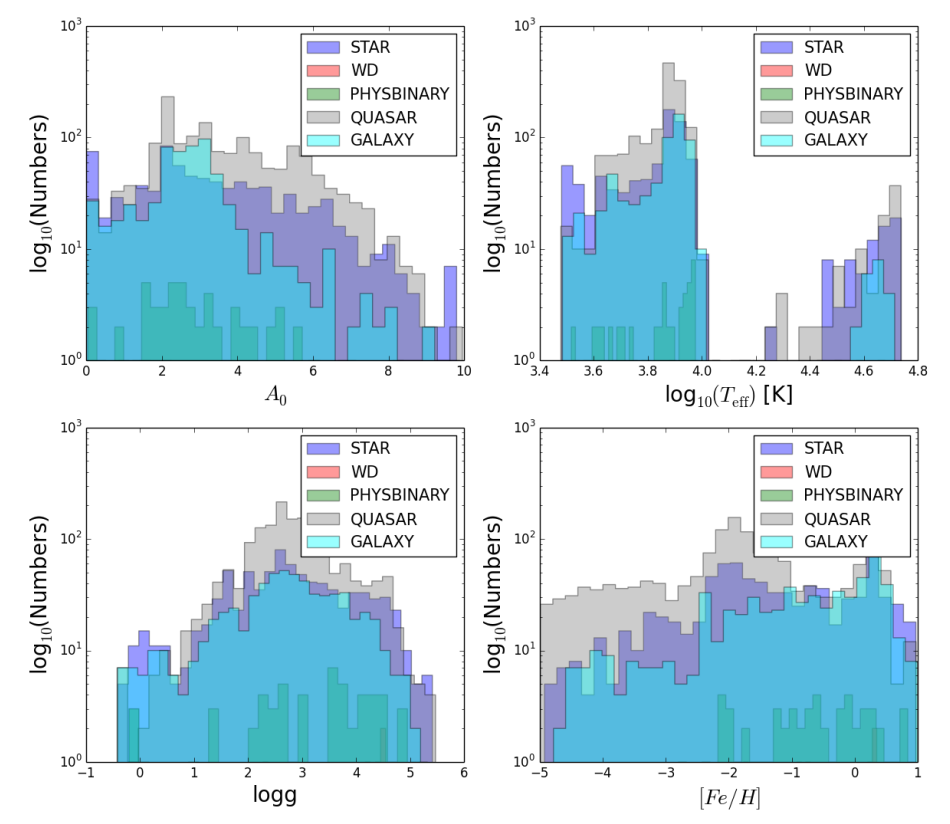

![Figure 2. One example of validation plot. Module developers or validation managers need to examine the output tables manually in order to assess the validity of those outputs.](/4485849/original-1518438322.jpg?t=eyJ3aWR0aCI6MjQ2LCJvYmpfaWQiOjQ0ODU4NDl9--4447bf19ab8362547a7701aafedea04343c94e43)
Figure 2. One example of validation plot. Module developers or validation managers need to examine the output tables manually in order to assess the validity of those outputs.
